Cantilever Mount

Other Models
Write a Review
Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

Where to BuyMSRP:

Description

Available June-July 2020

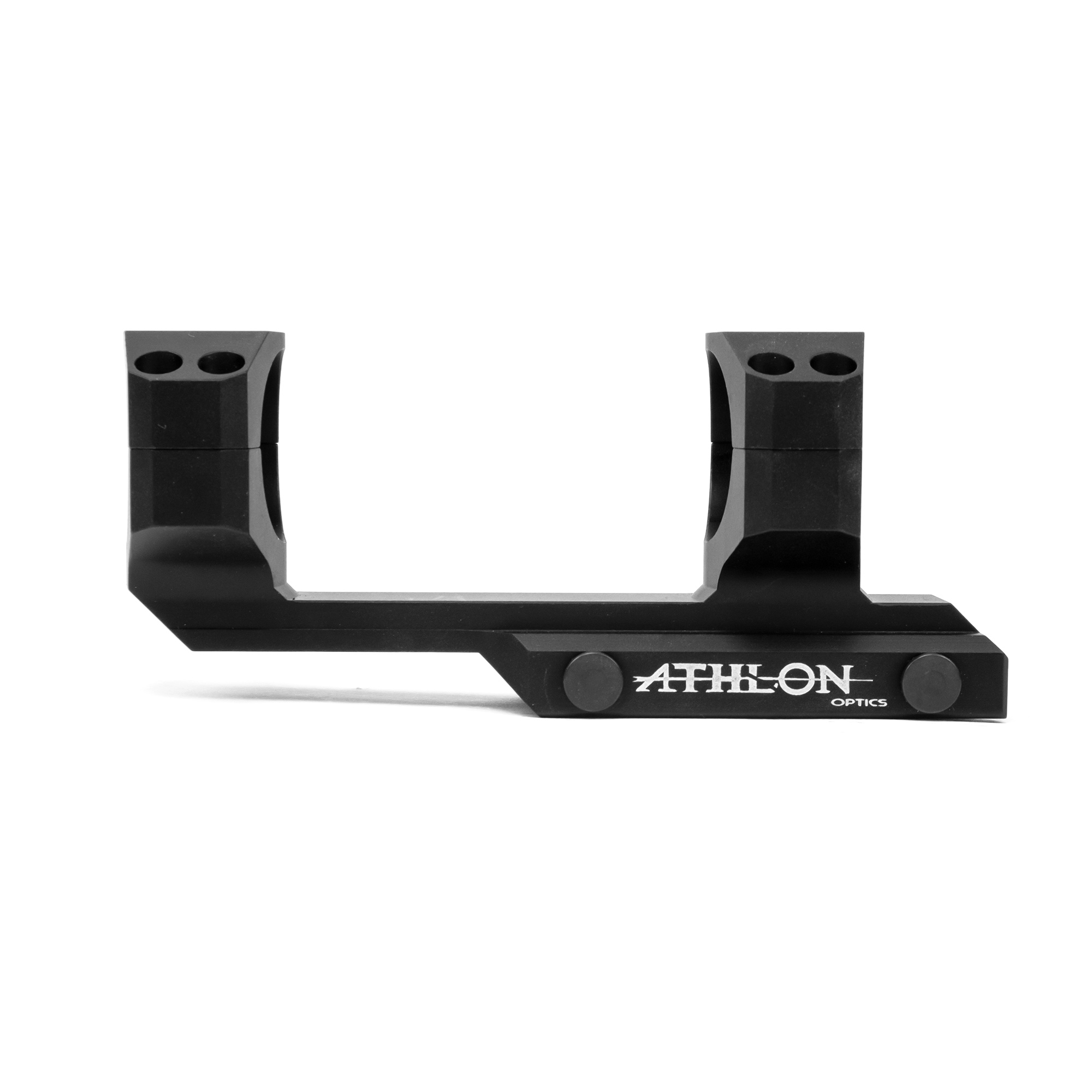

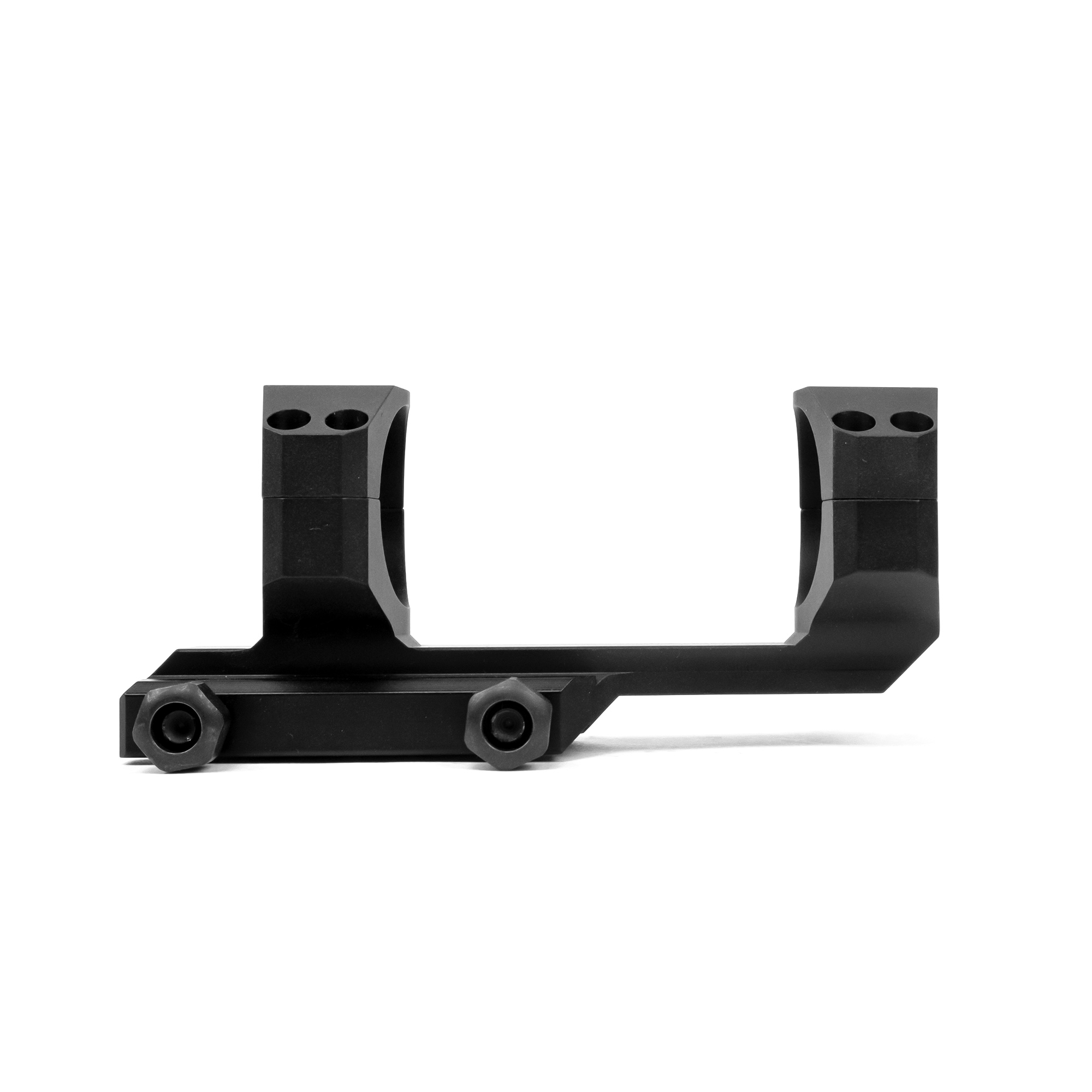

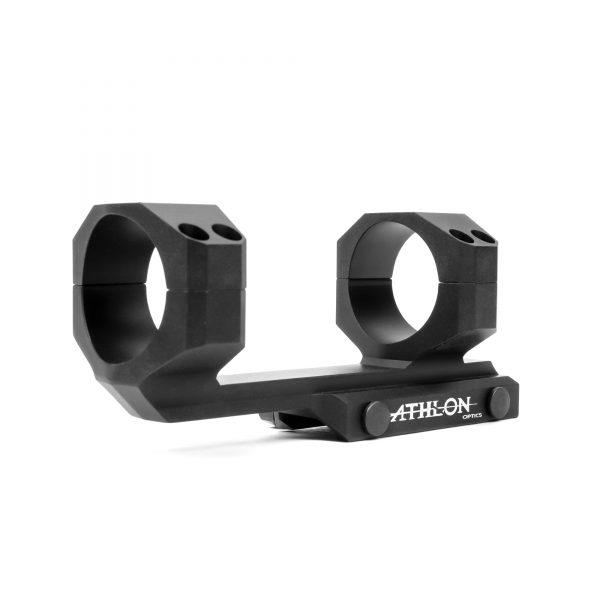

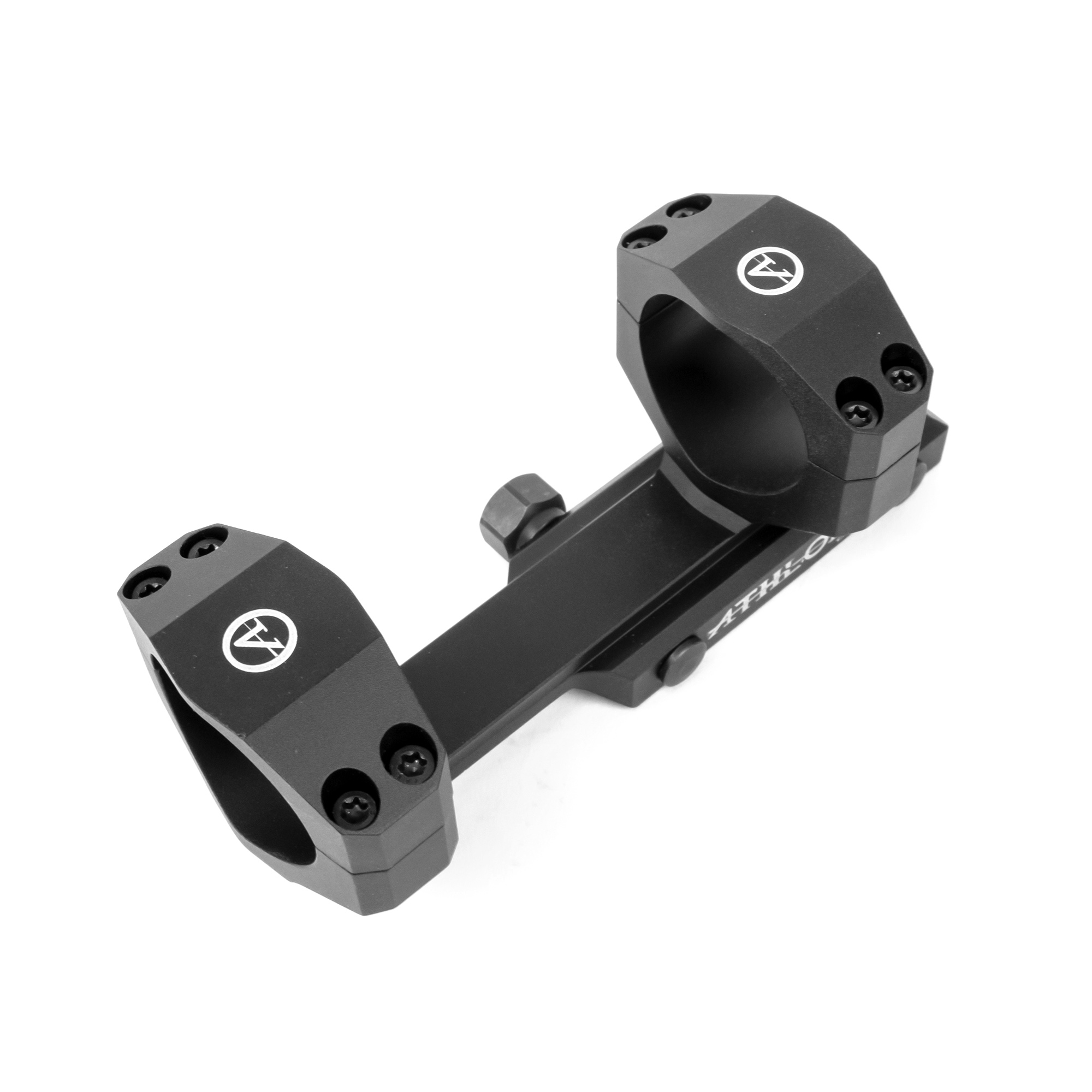

New for 2020, Athlon Cantilever mounts are made in the USA from High Strength Aluminum Alloy. Designed primarily for AR-15 and AR-10 rifles, these are also compatible on various MSR platforms.

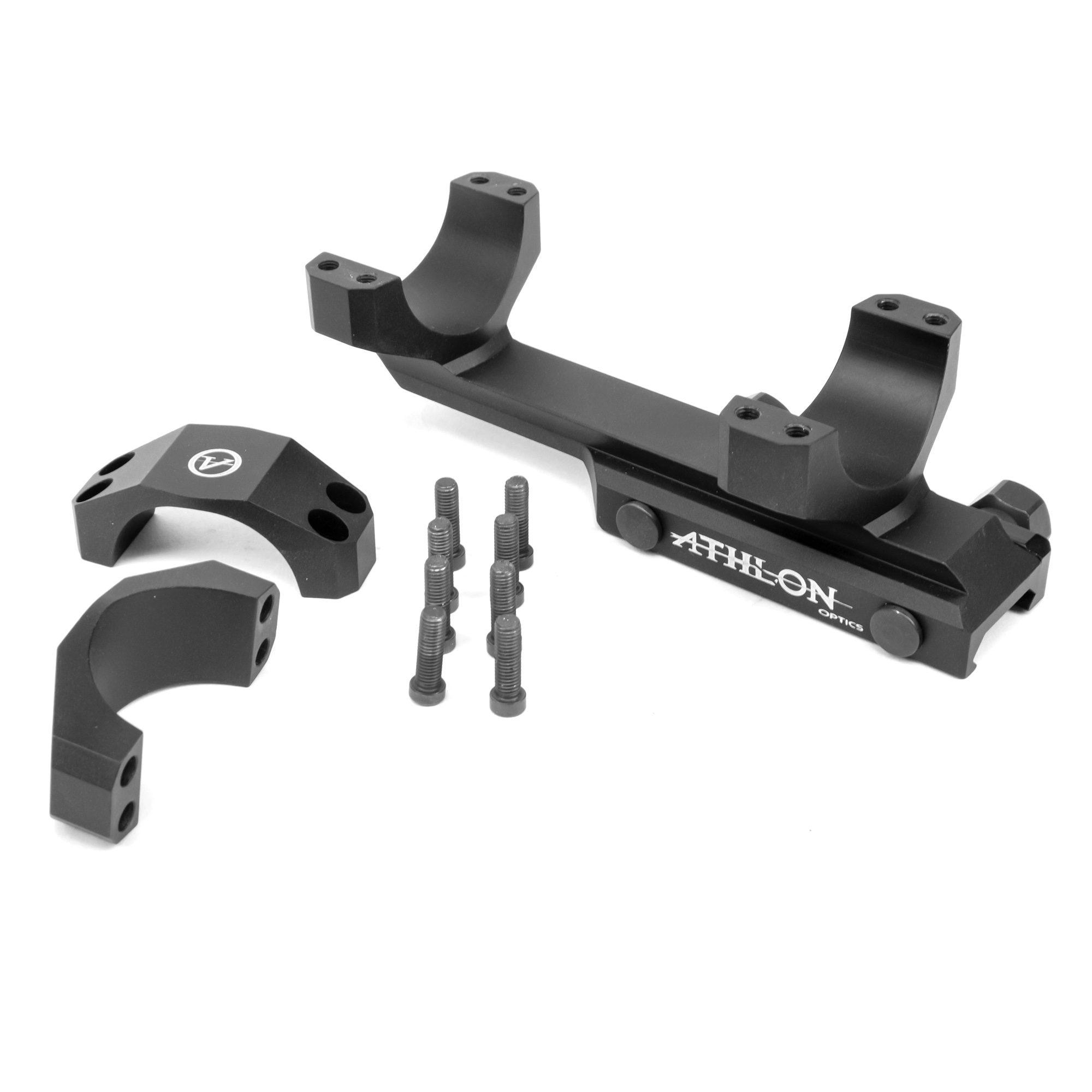

A four screw ring cap design paired with a  2-nut base and recoil lug cross-bolts. A scalloped profile increases surface area while reducing  mass, ensuring these rings will hold your scope tight!

If you need help selecting a ring height, check out this guide- Precision Ring Recommendations

SKUMSRPDiameterCant
701015124.9930mm0 MOA
701016137.4930mm20 MOA
701017149.9934mm20 MOA

Feature

Steel Recoil Lug Machined into the cross-bolts, these ultra durable recoil lugs eliminate ring shift in picatinny and weaver cross slots.
4- Screw Cap Retention The optimum balance of weight savings and retention.
Aircraft Grade Aluminum Aircraft Grade Aluminum provide extra strength and durability to handle the toughest terrain and offers lifetime of use.
Scalloped Design Increased area across the flex point of the rings increases mating surface contact ensuring a no-slip lap free design.
Hard Anodized Finish Hard anodizing increases the rings durability and wear resistance. While producing a glare free matte finish.

break

Specifications

Ring Screw Torque Spec 25 in/lbs
Nut Torque Spec 65 in/lbs

1 review for Cantilever Mount

  1. Rated 5 out of 5

    BigRagu –

    I like the way this rail is built. Nothing cheaply made about it. Absolutely looks awesome with the Athlon Helos it cradles on my FX Wildcat PCP. I’m going to outfit all my pcp gun’s with this mount vs the ones I’ve been using
